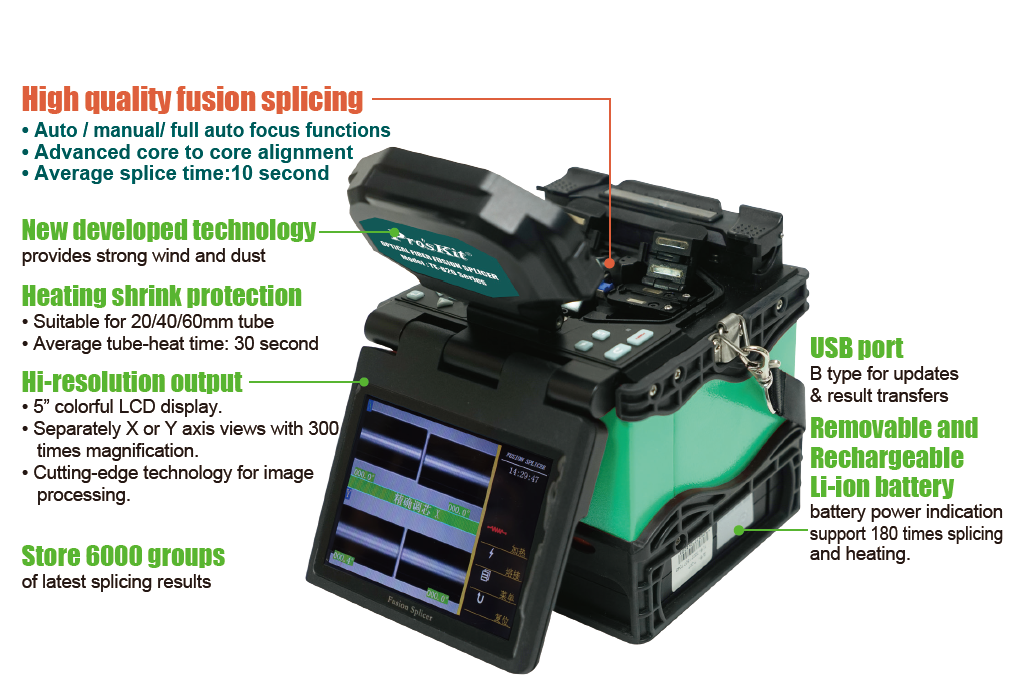

- The splicing machine is a new fully-digital design with 5” LCD colorful display, provide the latest core to core alignment technology, features 10sec. accurate splicing and 30 sec. tube-heating shrink.
| Model No. | TE-8202A-W | |
| Applicable Fibers | SM, MM, NZDS, EDF | |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | |
| Splice Time (sec.) | 10 sec. (for SM fiber) | |
| Return Loss | ≥60dB | |
| Diameter of fiber optic | Cladding diameter:80-150μm , Coating diameter:100-1000μm | |
| Tension Test | 2.0N(200gf)(Standard) | |
| Splicing Program | 50 groups | |
| Heat Shrinkable Tube | 20mm, 40mm, 60mm | |
| Memory Capacity | 6000 memories | |
| Battery low indication | 4pcs led light indication | |
| Environmental Conditions | -10∼+50ºC (operation temperature),0∼95% RH(humidity), 0∼5000m(altitude) | |
| Standard Package | Fusion splicing machine, AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs, Cooling tray, Quick reference guide, Carrying case with carrying strap |
|
| Power Supply | AC adaptor: INPUT:100-240V、50/60Hz、2A，OUTPUT: DC15V、5A | |
| Standard plug | A type | |
| Battery | 11.1V 5.2AH | |
| Dimensions | 130(W) x 135(D) x 130(H) mm | |
| Weight | 2480g (battery included) | |
| Model No. | TE-8202A-W | |
| Applicable Fibers | SM, MM, NZDS, EDF | |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | |
| Splice Time (sec.) | 10 sec. (for SM fiber) | |
| Return Loss | ≥60dB | |
| Diameter of fiber optic | Cladding diameter:80-150μm , Coating diameter:100-1000μm | |
| Tension Test | 2.0N(200gf)(Standard) | |
| Splicing Program | 50 groups | |
| Heat Shrinkable Tube | 20mm, 40mm, 60mm | |
| Memory Capacity | 6000 memories | |
| Battery low indication | 4pcs led light indication | |
| Environmental Conditions | -10∼+50ºC (operation temperature),0∼95% RH(humidity), 0∼5000m(altitude) | |
| Standard Package | Fusion splicing machine, AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs, Cooling tray, Quick reference guide, Carrying case with carrying strap |
|
| Power Supply | AC adaptor: INPUT:100-240V、50/60Hz、2A，OUTPUT: DC15V、5A | |
| Standard plug | A type | |
| Battery | 11.1V 5.2AH | |
| Dimensions | 130(W) x 135(D) x 130(H) mm | |
| Weight | 2480g (battery included) | |
